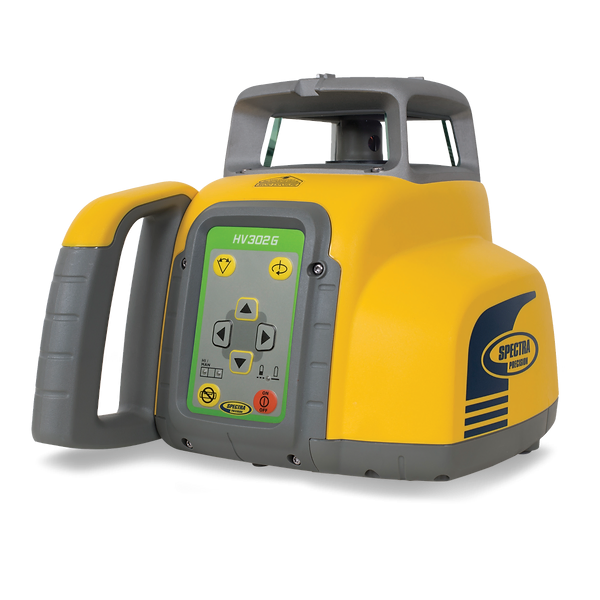

Spectra Precision HV302G Horizontal/Vertical Laser

Enquire for Price

Quick Overview

All the benefits of the HV302 with 4 times the visibility.

Contact Us

Details

The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

Key features & benefits:

  • Automatic horizontal and vertical self-leveling
  • Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)​
  • Working visible range of 75 m (250 ft) radius​
  • High-visibility beam – easily visible even in brightly lit condition​
  • Split beam – enables plumb point transfer and 90-degree layout​
  • Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings​
  • Long range RC402N Radio remote control​
  • HR150U – Interior Receiver with highly visible, LEDs and built-in Magnetic Mount​
  • Extremely durable and portable​
  • 3 Year warranty

SPECS

Leveling Accuracy

 ± 1.5 mm/30 m,

1/16“ @ 100 ft, 10 arc seconds
Operating Visible Radius 75 m (250 feet)

Rotation

 0, 10, 80, 200, 600 rpm
Pre-selected Scan Sizes 5°, 15°, 45°, 90°, 180° and 0
Laser Type Green diode laser 520 nm
Laser Class

Class 3A/3R, max. 5 mW

​Class 2 (Europe)
Self-Leveling Range ± 5° (±9%)
Leveling Indicators LED flashes
Radio Range (HL760U): up to 100 m (330 ft)
Power Source 10.000 mAh NiMH battery pack
Battery Life 30 hours NiMH; 25 hours alkaline
Operating Temp. -20°C to 50°C (-4°F to 122°F)
Storage Temp. -20°C to 70°C (-4°F to 158°F)
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust and Waterproof Yes – IP66
Weight 3.1 kg (6.8 lbs)
Low Voltage Indication LED battery indicator
Low Voltage Disconnection Unit shuts off
Warranty 3 Years
