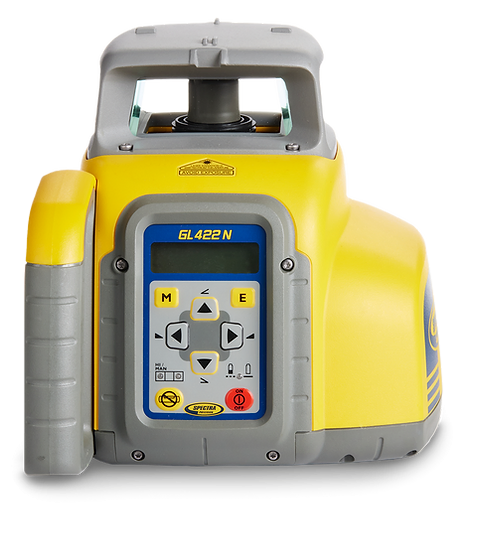

Spectra Precision GL422N Dual Grade Laser

Details

The GL422N is a dual grade laser that also offers long-range operation in addition to its grade range up to 15%. Operate the laser using longer range remote controls. With a radio remote operating at a range up to 330 feet (100 meters) you have the ability to make grade changes and to make them remotely, which can significantly reduce setup time.

It takes a licking and keeps on winning.

The GL422N laser can withstand drops of up to one meter (three feet) onto concrete and tripod tip-overs up to 1.5 meters (five feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Pairing the GL422N with the HL760 or CR700 receiver provides even greater functionality with the automatic Grade Match and PlaneLok features.

Features & Benefits

• Easy-to-use menu-driven interface reduces learning time and eliminates complex button pressing to activate advanced features
• ​The exact grade can be entered in two axis’ and is self-leveling
• ​One person elevation control with 2600 ft (800 m) diameter range increases productivity
• ​RC402N radio remote control allows control of all laser functions from up to 330 ft (100 m) away
• ​Maintains performance even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
• Durable design reduces downtime due to drops and tripod tip-overs
• ​Automatic Grade Match eliminates time-consuming and error-prone calculation
• ​Mask mode eliminates interference with other crews on the job site

Comes with choice of CR700 or HL760 receivers so you can choose the best option to suit your application

​SPECS

DOWNLOADS

• Product Datasheet
• Manual
