The Leica Lino L6R is a self-leveling red multi line laser with 360° laser line projection for multi-directional alignment—perfect for indoor applications. The laser’s vertical lines are easily adjusted (± 10°) once the plumb point is set.
Three 360° thin, crisp and clearly visible red laser lines, two vertical, and one horizontal, which are exactly at the right angle (90°) to one another.

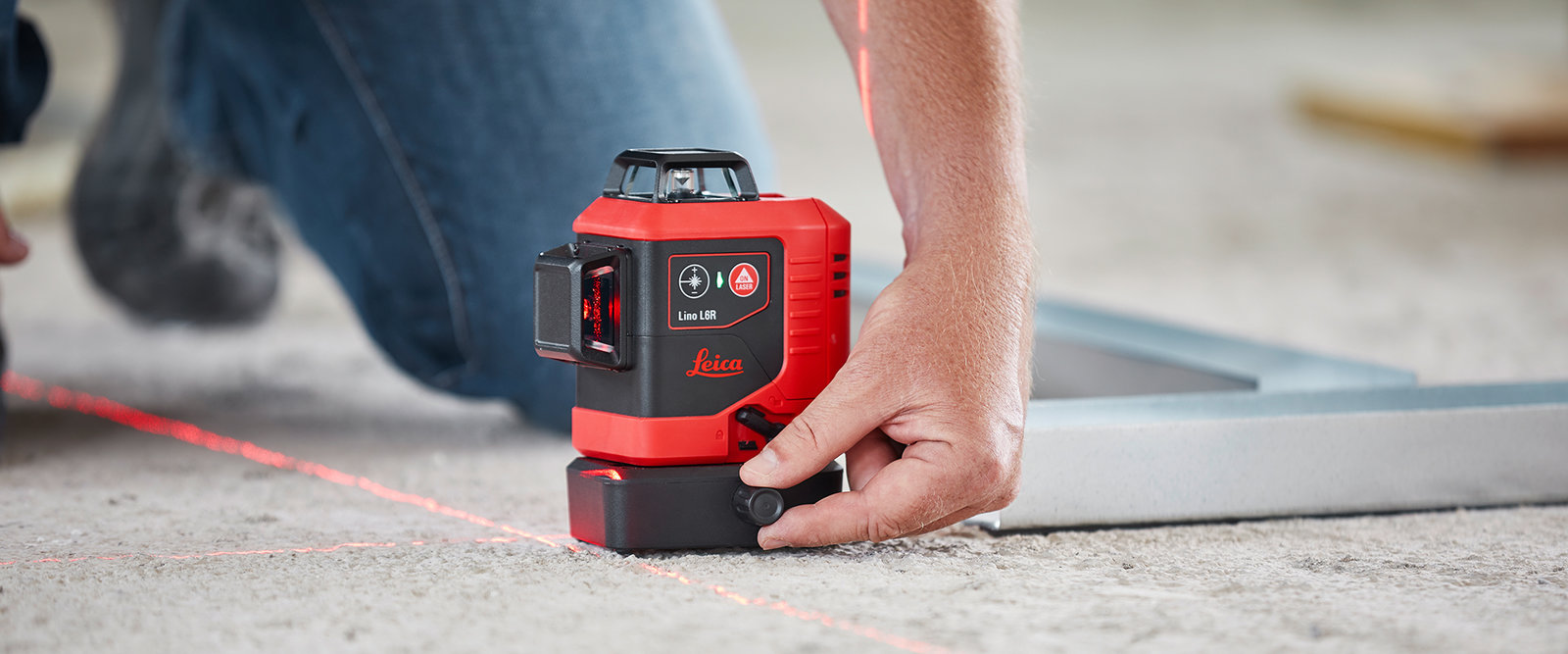

The precision adjustment handles, and the laser’s eccentric base allow the laser lines to rotate by ± 10° around the plumb point while the line-laser keeps its position; allowing for quick and precise setup for any alignment, plumbing, levelling or squaring tasks.
The triple-power concept ensures an uninterrupted workflow. Rechargeable Li-Ion batteries power the Lino L6R for up to 36 hours; alternatively, Alkaline batteries or simply its charger can be used. The strength of the laser lines is adjustable (100/75/50 percent). This not only makes the red laser lines thinner, but also increases the operating time.
(Please note that this is not included in all Lino L6R packages)
The 360° laser lines have an operating range of up to 25 meters / 82 feet, depending on lighting conditions. This means that the Lino L6R achieves laser line projections of up to 50 meters / 164 feet in diameter. This range can be easily extended up to 140 meters / 460 feet by using the RGR200 laser receiver.
The Lino L6R is designed for tough environments. It is shock absorbent and protected against dust and splash water (IP54).
You can position the cross section (plumb point) of the two vertical laser lines where it is required and then rotate the two horizontal laser lines by ± 10° while the position of the plumb point stays in place. This allows you to position the laser lines of the Lino L6R much faster.
MAGNETIC ADAPTERS
Magnetic adapters allow for easy positioning to wall moldings, metal poles, and bars; perfect for suspended ceiling installations, transferring reference heights and complex drywall installations.
You can individually select each red 360° laser line and its power mode to be turned on or off when the device starts up; meaning your 3×360° laser remembers your preferred settings on set up.
The Lino L6R is a self-levelling multi- line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level and no manual alignment is needed.
Leica Lino L6R Product Data Sheet
