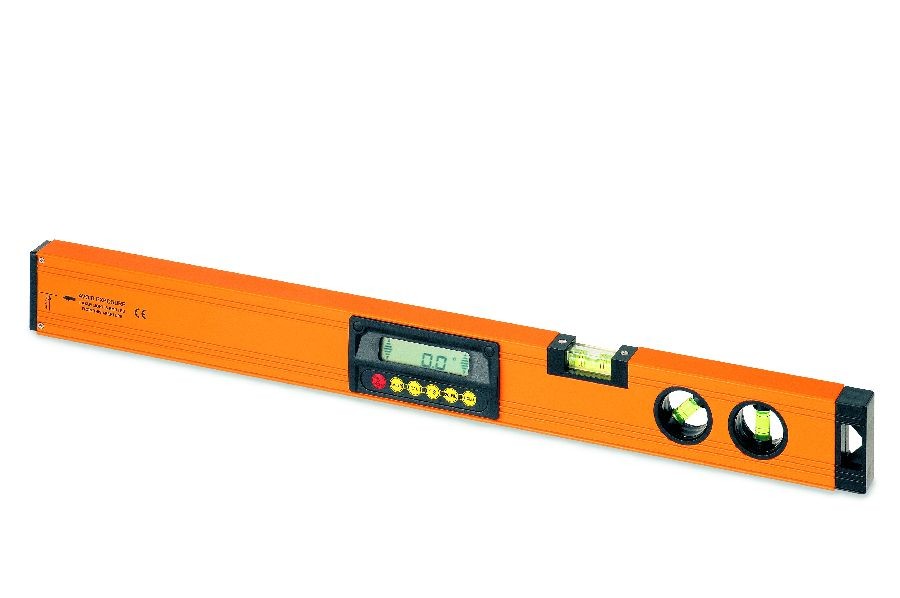

Geo Fennel – S-Digit 60

Enquire for Price

Quick Overview

Robust slope measurer. Length 60 cm. Incorporated laser beam.

Manufacturer link

Contact Us

Details

FEATURES
  • Small and handy
  • Inclination in degrees (°) or percent (%)
  • Working range of angle measurement 4 x 90°
  • 0° and 90°-position of inclination is confirmed by a signal tone
  • Automatic digit inversion for overhead measurement
  • Hold-function to freeze measurement
  • Magnetic base
  • 1/4” thread for camera tripod
  • Zero position re-set (between 0° and 33°)
TECHNICAL DATA
Working range 4 x 90°
Resolution 0,1° or 0,1 %
Accuracy 0° + 90° = ± 0,1°
1° – 89° = ± 0,2°
Working range laser 20 m
Accuracy ± 0,5 mm/1 m
Wave length 650 nm
Laser class 2
Power supply 3 x 1.5 V AA
Operating time 60 h
Size 600 x 27 x 60 mm
Weight 0,85 kg
