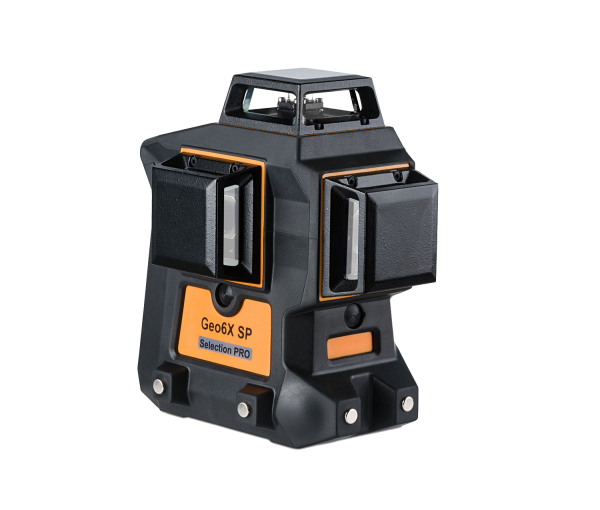

Geo Fennel Geo6X SP

Quick Overview

Multi-functional for versatile levelling jobs at indoor construction sites.

Details

Simple outfit with alkaline batteries and bag

Features

  • 3 x 360°-laser lines form 6 laser crosses
  • Laser lines switchable separately
  • Plumbing function
  • Laser plane distance to wall/ceiling min. 12 mm
  • Magnets at the front and side for connection to dry wall track
  • Use with receiver (optional)
  • Self-levelling function can be locked for manual use
  • 5/8″ & 1/4″ connection at the instruments bottom

Technical specifications

Self-levelling range: ± 3°
Accuracy: ± 2 mm / 10 m
Laser diode: red
Working range without receiver: 30 m (radius)
Working range with receiver: 60 m (radius)
Dust / water protection: IP 54
Laser class: 2
Operating time: 5 h (Full capacity utilisation)
Power supply: Alkaline
Temperature range: -10°C to +45°C
Extended size: 14 x 13 x 8 cm

Scope of delivery

Included in scope delivery:

  • 4 x Alkaline batteries
  • Magnetic target
  • Softbag

Downloads

Technical Data Sheet
Manual
