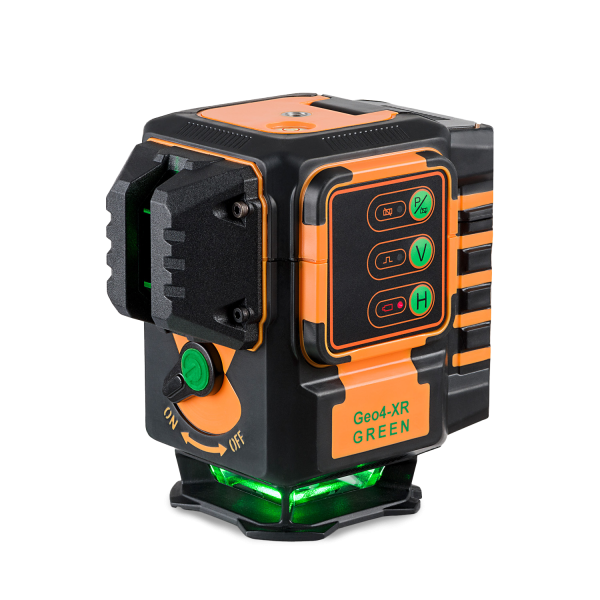

Geo Fennel Geo4-XR GREEN

Enquire for Price

Quick Overview

A proven laser product – now rethought and improved- 360° horizontal and 2 vertical lines for versatile levelling and right angle creation.

Contact Us

Details

A proven laser product – now rethought and improved- 360° horizontal and 2 vertical lines for versatile levelling and right angle creation. Green laser lines for best visibility. Innovative – standing and hanging application for best possible use. Compact with a wide range of useful accessories.

FEATURES

  • 360° horizontal line
  • 2 verticale Lines 130° form 4 laser crosses
  • Laser lines switchable separately
  • Plumbing function (laser cross at floor & ceiling)
  • 8 mm minimum distance of Hz laser line to the floor
  • Multi-functional mount
    • height adjustable
    • for wall-hanging with screw
    • strap attachment
    • strong magnet on back side
  • Visual and audible alarm when out of level
  • Self-levelling function can be locked for manual use
  • Tripod connection top and bottom 1/4″ (bottom side with adapter)
  • Use with receiver FR 75-MM / FR 55 (optional)

Technical specifications

Weight (instrument with battery): 0,8 kg
Self-levelling range: ± 3°
Accuracy: ± 2 mm / 10 m
Laser diode: green
Working range without receiver: 30 m (radius)
Working range with receiver: 60 m (radius)
Dust / water protection: IP 54
Laser class: 2
Operating time: 9 h
Power supply: Li-Ion
Temperature range: -10°C to +45°C

Included in scope delivery:

  • Li-Ion battery
  • Intelligent Charger & USB 3.0 Cable
  • Battery case for alkaline batteries
  • Multi-functional mount
  • 20 mm Fixed height adaptor with 1/4″
  • 2x Height measurement pins
  • Padded bag

Downloads

Technical Data Sheet
Manual
