Geo Fennel Geo1X-GREEN

Enquire for Price

Quick Overview

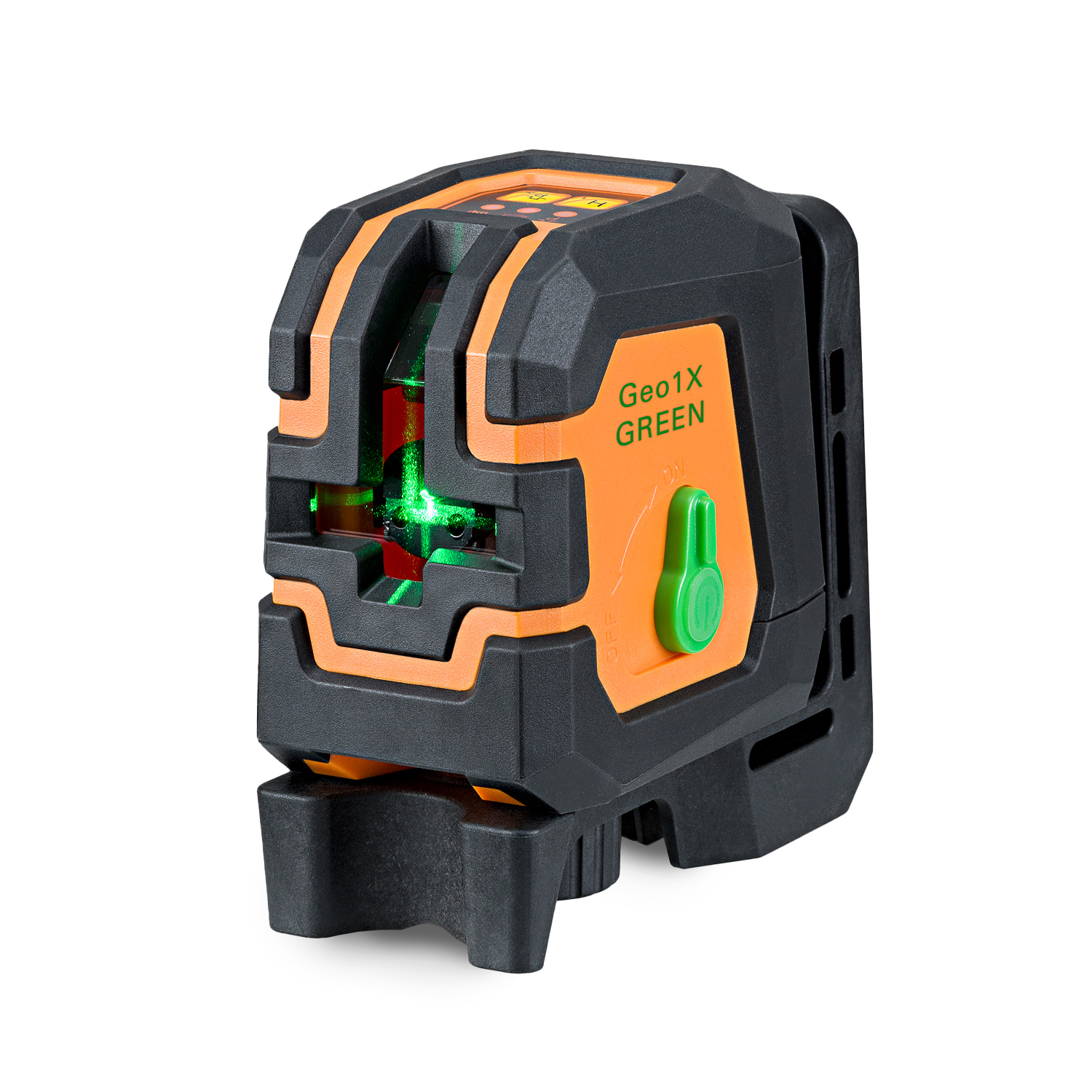

Cross line laser with clearly visible green laser lines.

Contact Us

Details

Cross line laser with clearly visible green laser lines. Robust rubberised housing, easy operation – the ideal partner for levelling work indoors.

FEATURES

  • A vertical and horizontal line combine to form a laser cross.
  • Self-levelling function can be locked for manual use
  • Visual/acoustic alarm when out of self-levelling range
  • Wall/tripod mount
    • magnets on back side
    • screw hole for wall-attachment
    • 1/4″ & 5/8″ connection
  • Use with receiver FR 75-MM / FR 55 / FR 55-M (optional)

Technical specifications

Self-levelling range: ± 3°
Accuracy: ± 3 mm / 10 m
Laser diode: green
Working range without receiver: 30 m (radius)
Working range with receiver: 60 m (radius)
Dust / water protection: IP 54
Laser class: 2
Operating time: 5 h
Power supply: 4 x AA Alkaline

Included in scope delivery:

  • 4 x AA Alkaline battery
  • Wall/tripod mount
  • Padded carrying case

Downloads

Manual
Technical Data Sheet
