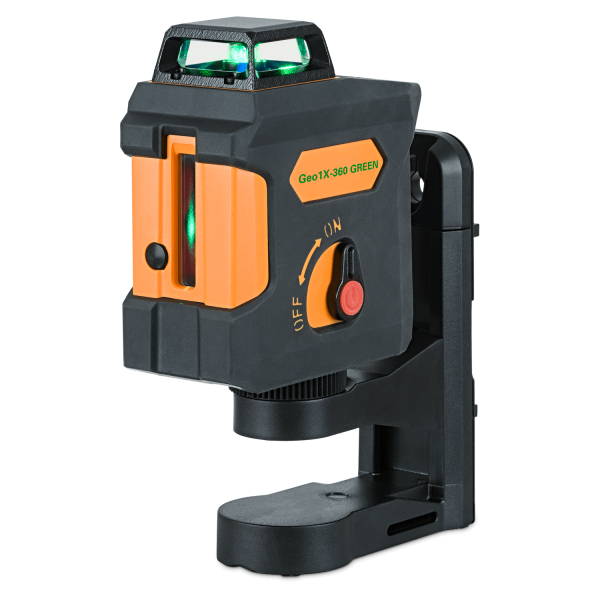

Geo Fennel Geo1X-360 GREEN

Enquire for Price

Quick Overview

A self-levelling GREEN line laser with outstanding line visibility

Contact Us

Details

Self-levelling function can be switched off for manual use

Pulse-function to extend working range with receiver (optional)

Features

  • 1 Laser cross
  • 1 x 360° horizontal laser line
  • Laser lines switchable separately
  • TILT function for manual use
  • Visual alarm when out of level
  • Use with receiver FR 75-MM / FR 55 / 55-M (optional)
  • Multi-functional mount
    • height adjustable
    • for wall-hanging with screw
    • strap attachment
    • strong magnet on back side
  • 1/4“ and 5/8“ thread for use with tripods etc.

 Technical specifications

Self-levelling range: ± 3°
Accuracy: ± 3 mm / 10 m
Laser diode: green
Working range without receiver: 30 m (radius)
Working range with receiver: 50 m (radius)
Dust / water protection: IP 54
Laser class: 2
Operating time: 5 h (Full capacity utilisation)
Power supply: 4 x AA Alkaline
Temperature range: -10°C to +45°C
Extended size: 115 x 96 x 118 mm
Selection PRO: Ja

Included in scope delivery:

  • Multi-functional mount
  • 4x AA Alkaline battery
  • Padded bag

Downloads

Manual
Technical Data Sheet
